Quick Details

Condition:	New	Type:	Bucket Conveyor, Cement bucket elevator	Material:	Carbon steel
Material Feature:	Heat Resistant	Structure:	Chain Conveyor	Load Capacity:	21~36m³/h
Place of Origin:	zhengzhou, China (Mainland)	Brand Name:	SHUANGYUE	Model Number:	TH315
Voltage:	380V	Power(W):	22kw	Dimension(L*W*H):	As per the model you choose
Certification:	ISO 9001-2008	After-sales Service Provided:	Overseas third-party support available	Hopper width:	315mm
Hopper capacity:	3.75/6L	Hopper Pitch:	500mm	Hopper speed:	1.4 m/s
Size of input materail:	Not more than 45mm	Application:	Coal,cement,grain,powder,granule etc.	Motor type:	Adjust speed motor
Color:	As required	Warranty:	One year

Packaging & Delivery

Packaging Details:	Cement bucket elevator  wooden case, General Packaging, Acc to customer's requirements.
Delivery Detail:	Within 30 days after received deposit

Specifications

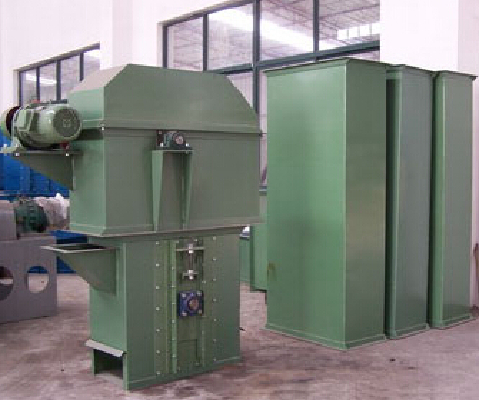

Cement bucket elevator
1.Lifting height is up to 60 m.
2.Material of temperature is up to 250 degree.
3.ISO 9001.

Cement bucket elevator

TH,HL type round chain cement bucket elevator with iron chain apply to transporting materials vertically such as powder, pellet, particulate, even if with more surface friction, for example food, coal, cement, granular ore, etc. The lifting height is up to 60 meters.

Application

Th cement bucket elevator is widely used in mining, cement,metallurgy, building materials, coal, hydropower and other departments. Round chain bucket elevator is one of  commonly used equipment in cement plant.

Feature

1. Simple structure, smooth running, charging by digging, discharging by gravity or hybrid power, the temperature of materials is up to 250°C;

2. TH type cement bucket elevator is designed and manufactured according to JB3926-85 standard, it should prefer to be chosen rather than D type traditional bucket elevator because of high transmission efficiency and high temperature resistance.

2. And the ring-chain can be replaced easily by fixed sprocket device. The sprocket device has long working life through special process of heat treatment. By adopting automatic gravity tensioning device, that makes the chain keep constant tension, so that the chain will not slip or take off .In addition, the automatic gravity tensioning device can protect the moving parts from crashing and locking when the hopper has been blocked.

Technical parameters

Model	TH160		TH200		TH250			TH315		TH400		TH630		TH800		TH1000
Hopper type	Zh	Sh	Zh	Sh	Zh		Sh	Zh	Sh	Zh	Sh	Zh	Sh	Zh	Sh	Zh	Sh
Delivery value(m3\h)	8	12	13	22	16		28	21	36	36	56	68	110	87	141	141	200
Hopper width(mm)	160		200		250			315		400		630		800		1000
Hopper capacity(L)	1.2	1.9	2.1	3.2	3.0	4.6		3.75	6	5.9	9.5	14.6	23.6	23.3	37.5	37.6	58
Hopper distance(mm)	320		400		500			500		600		688		920		920
Specification of chain	φ12×38		φ12×38		φ14×50			φ18×64		φ18×64		φ22×86		φ26×92		φ26×92
Nodal diameter of sproket(mm)	400		500		600			630		710		900		1000		1250
Hopper speed(m/s)	1.25		1.25		1.4			1.4		1.4		1.5		1.6		1.61
Max granularity(mm)	18		25		32			45		55		75		85		100

How to choose the machine suitable for you:

1. What’s your throughput? Such as 5t/h,10t/h,20t/h etc.

2. How high will the bucket elevator lift? Such as 5m,20m,50m,70m etc.

3. What’s material you need lifting? Such as coal, cement, stone, grain etc.

Tell me those data, we can help you choose the suitable machine for you.

If you are interested in our other products also, pls tell us know also.
